Samsung Exynos 9820 8 nm flagship Exynos with Mali-G76 MP12, NPU/DSP AI and 8K30 or 4K150 video.
Research connections WikiChip archive references Matched archive addresses are research leads. Capture metadata alone does not verify a specification; field-level evidence is listed below.
samsung/exynos/9820 · 2022-12-24 ↗
Specifications 11 SOURCE-LINKED FIELDS Identity & fabrication CPU & clock domains Graphics AI & security Memory & interfaces Camera, video & display Connectivity & devices Identity & fabrication Process 8nm FinFET Scope: silicon-die
CPU & clock domains CPU custom 2× Custom CPU at 2.3 GHz Scope: silicon-die
CPU performance cores 2× Cortex-A75 at 2.3 GHz Scope: silicon-die
CPU efficiency cores 4× Cortex-A55 at 1.9 GHz Scope: silicon-die
Graphics GPU Mali-G76 MP12 Scope: silicon-die
AI & security AI AI engine with NPU and DSP Scope: silicon-die
Memory & interfaces Memory LPDDR4X Scope: silicon-die
Storage UFS 3.0 / UFS 2.1 Scope: silicon-die
Camera, video & display Camera single 22MP or dual 16MP+16MP Scope: silicon-die
Video 8K 30fps or 4K UHD 150fps encode/decode Scope: silicon-die
Connectivity & devices Modem LTE Cat.20, 2Gbps DL / 316Mbps UL Scope: silicon-die
Suggest a correction Enter the full die exhibit Overview Sources & history Discussion
Record identity & scope silicon design · Samsung Exynos 9820

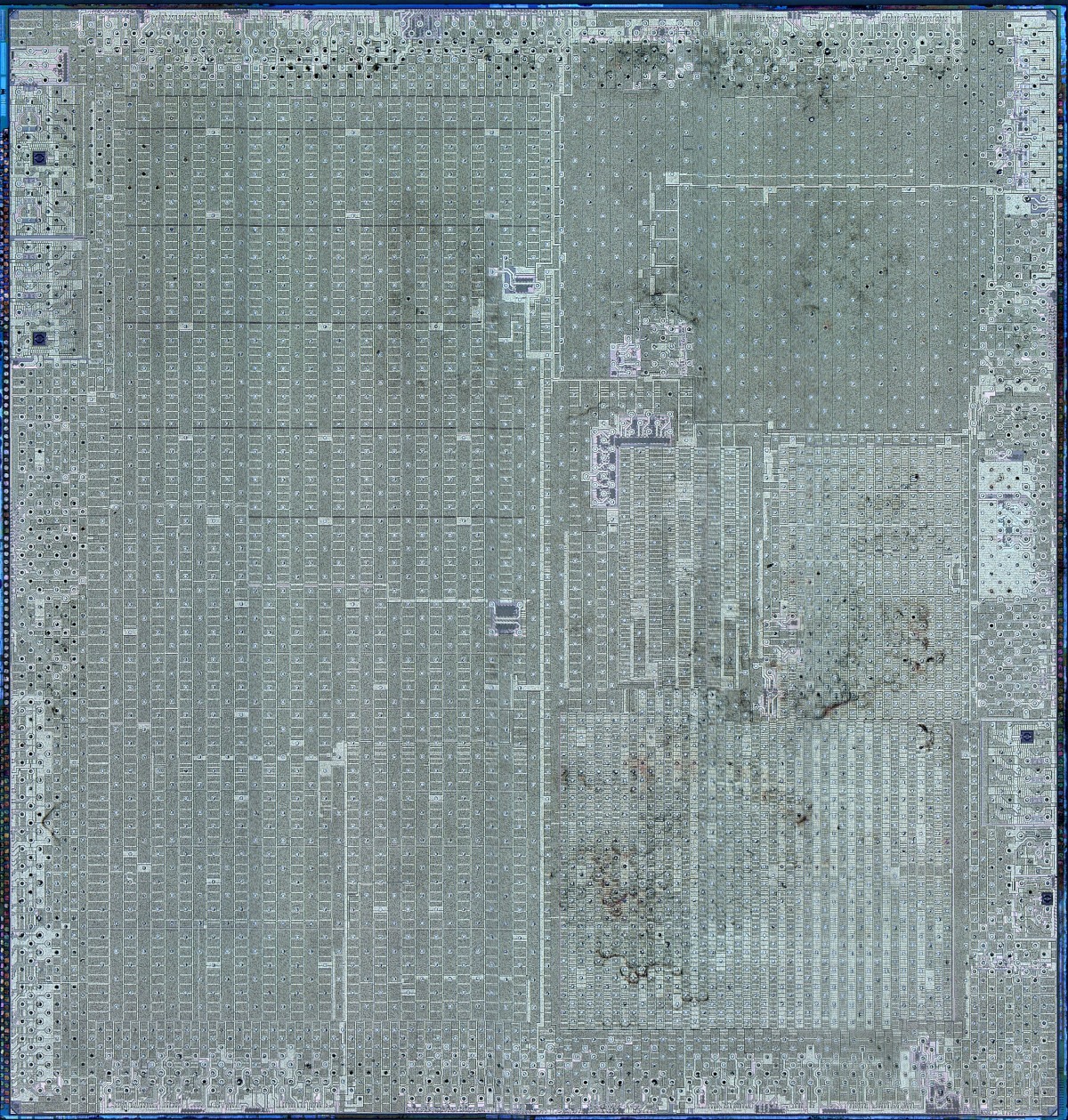

What this photograph shows Samsung Galaxy S10 teardown. Backside/deprocessed die view, as identified by source
VLSI Korea
