SILICON DESIGN / DATE NOT RECORDED
Samsung Exynos 1480 4 nm Exynos with Xclipse 530 graphics and a 2.75 GHz octa-core CPU.
Specifications 12 SOURCE-LINKED FIELDS Identity & fabrication CPU & clock domains Graphics AI & security Memory & interfaces Camera, video & display Connectivity & devices Identity & fabrication Process 4 nm Scope: silicon-die
CPU & clock domains CPU configuration Cortex-A78x4 2.75 GHz, Cortex-A55x4 2.0 GHz Scope: silicon-die
Graphics GPU Xclipse 530 Scope: silicon-die
AI & security NPU configuration AI engine with 6K MAC NPU Scope: silicon-die
Memory & interfaces Memory LPDDR4X/5 Scope: silicon-die
Storage UFS 3.1 Scope: silicon-die
Camera, video & display Display FHD+ @144 Hz Scope: silicon-die
Camera processing modes Single camera 200MP (Max), Single camera 64MP @30 fps, Dual camera 32MP+32MP @30 fps Scope: silicon-die
Video modes 4K 60 fps encoding/decoding Scope: silicon-die
Video codecs HEVC (H.265), H.264, VP9, VP8 Scope: silicon-die
Codec list; not every codec is established at every listed encode/decode mode.
Connectivity & devices Connectivity Wi-Fi 6E, Bluetooth 5.3, GNSS Scope: silicon-die
Manufacturer connectivity/interface support; integration scope depends on the complete platform.
Modem rates 5G NR Sub-6GHz 5.1 Gbps (DL), 1.28 Gbps (UL) / 5G NR mmWave 4.84 Gbps (DL), 0.92 Gbps (UL) / LTE Cat.18 6CC 1.2 Gbps (DL), Cat.18 2CC 211 Mbps (UL) Scope: silicon-die
Theoretical link maxima under supported radio conditions; not an observed network speed.
Suggest a correction Enter the full die exhibit Overview Sources & history Discussion
Record identity & scope silicon design · Samsung Exynos 1480

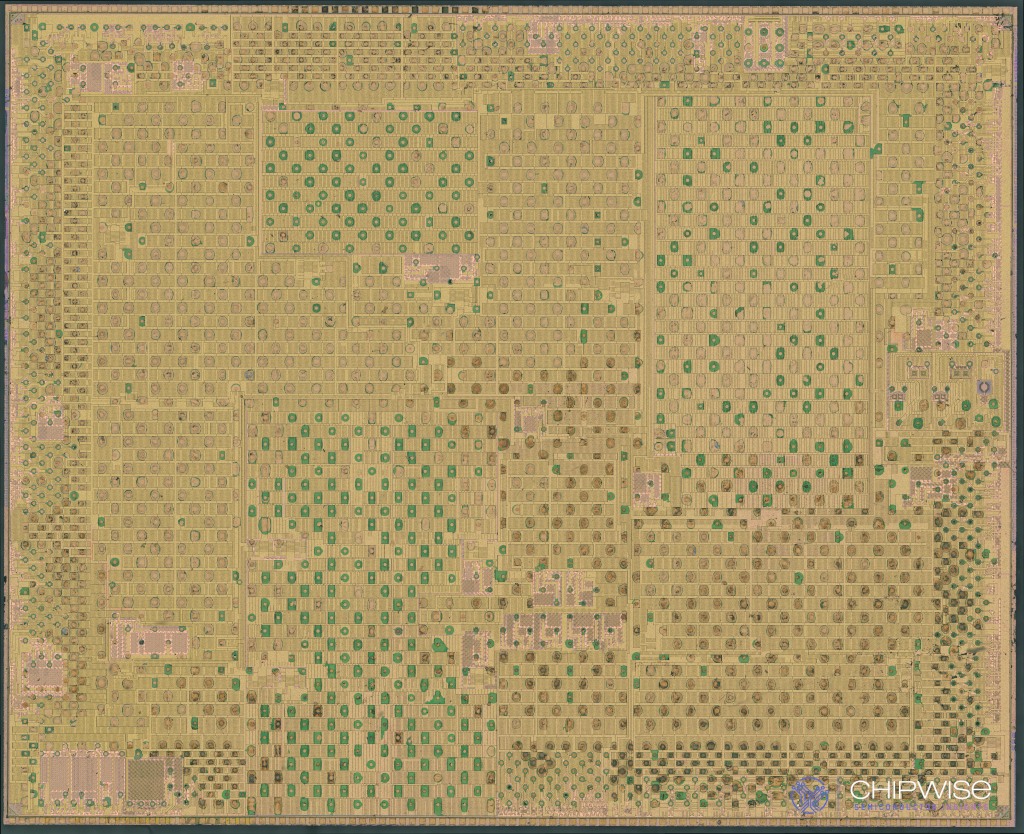

What this photograph shows Samsung Exynos 1480 SoC. Backside/deprocessed die view, as identified by source
