SEMICONDUCTOR REFERENCE

12 nm

Find products, devices, processes and manufacturing tools with specifications and original sources.

Specification query syntax

Use cores, threads, clock, boost, l2, l3, tdp, memory or year with =, >=, <=, > or <. Units: GHz, MB, W, GB. Unknown or conflicting values do not match numeric conditions.

Company

Subtype / application

Entity type

Family

Process label

Architecture

Imagery

56 recordsSort

specimen

Source values retain units and entity scope. Open the citation on the record for conditions. Missing fields are unresearched; conflicting observations remain visible.
Compare	Entity	Subject	Package	Die area
	AMD Ryzen 5 2600 · Pinnacle RidgeAMD · physical specimen	unresearched	unresearched	unresearched
	NVIDIA GeForce RTX 2060 · TU106 die markingNVIDIA · physical specimen	unresearched	unresearched	unresearched

cpu

Source values retain units and entity scope. Open the citation on the record for conditions. Missing fields are unresearched; conflicting observations remain visible.
Entity	CPU organization	Clock / peak	Cache	Process label	Die area

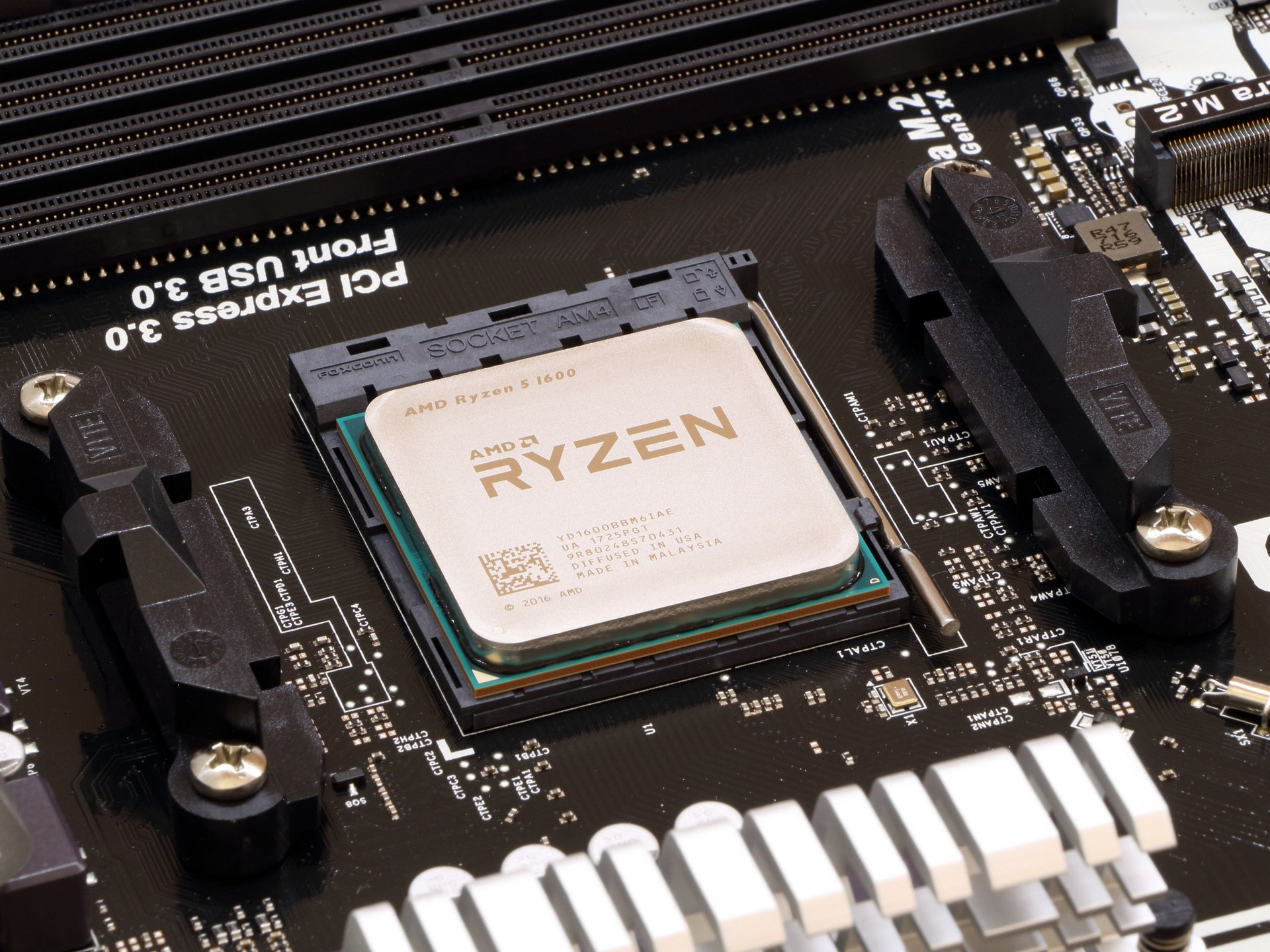

AMD Ryzen 5 1600AMD · product model · 2017	6Cores	3.2 GHzBase clock	3 MBL2 cacheConflicting observations	12 nmProcessConflicting observations	213 mm²Die area
AMD Ryzen 5 2600AMD · product model · 2018	6Cores	3.4 GHzBase clock	3 MBL2 cacheConflicting observations	12 nmProcess	213 mm²Die area
AMD Ryzen Threadripper 2920XAMD · product model · 2018	12Cores	3.5 GHzBase clock	6 MBL2 cacheConflicting observations	12 nmProcess	213 mm²Die area
AMD Ryzen Threadripper 2920X OEM/TrayAMD · product model · 2018	12Cores	3.5 GHzBase clock	6 MBL2 cache	12 nmProcess	unresearched
AMD Ryzen Threadripper 2950XAMD · product model · 2018	16Cores	3.5 GHzBase clock	8 MBL2 cacheConflicting observations	12 nmProcess	213 mm²Die area
AMD Ryzen Threadripper 2950X OEM/TrayAMD · product model · 2018	16Cores	3.5 GHzBase clock	8 MBL2 cache	12 nmProcess	unresearched
AMD Ryzen Threadripper 2970WXAMD · product model · 2018	24Cores	3 GHzBase clock	12 MBL2 cacheConflicting observations	12 nmProcess	213 mm²Die area
AMD Ryzen Threadripper 2990WXAMD · product model · 2018	32Cores	3 GHzBase clock	16 MBL2 cacheConflicting observations	12 nmProcess	213 mm²Die area
AMD Ryzen Threadripper 2990WX OEM/TrayAMD · product model · 2018	32Cores	3 GHzBase clock	16 MBL2 cache	12 nmProcess	unresearched
Athlon PRO 300GEAMD · product model · 2019	2Cores	3400 MHzBase clock	1 MiBL2 cache	12 nmProcess	209.78 mm²Die area
