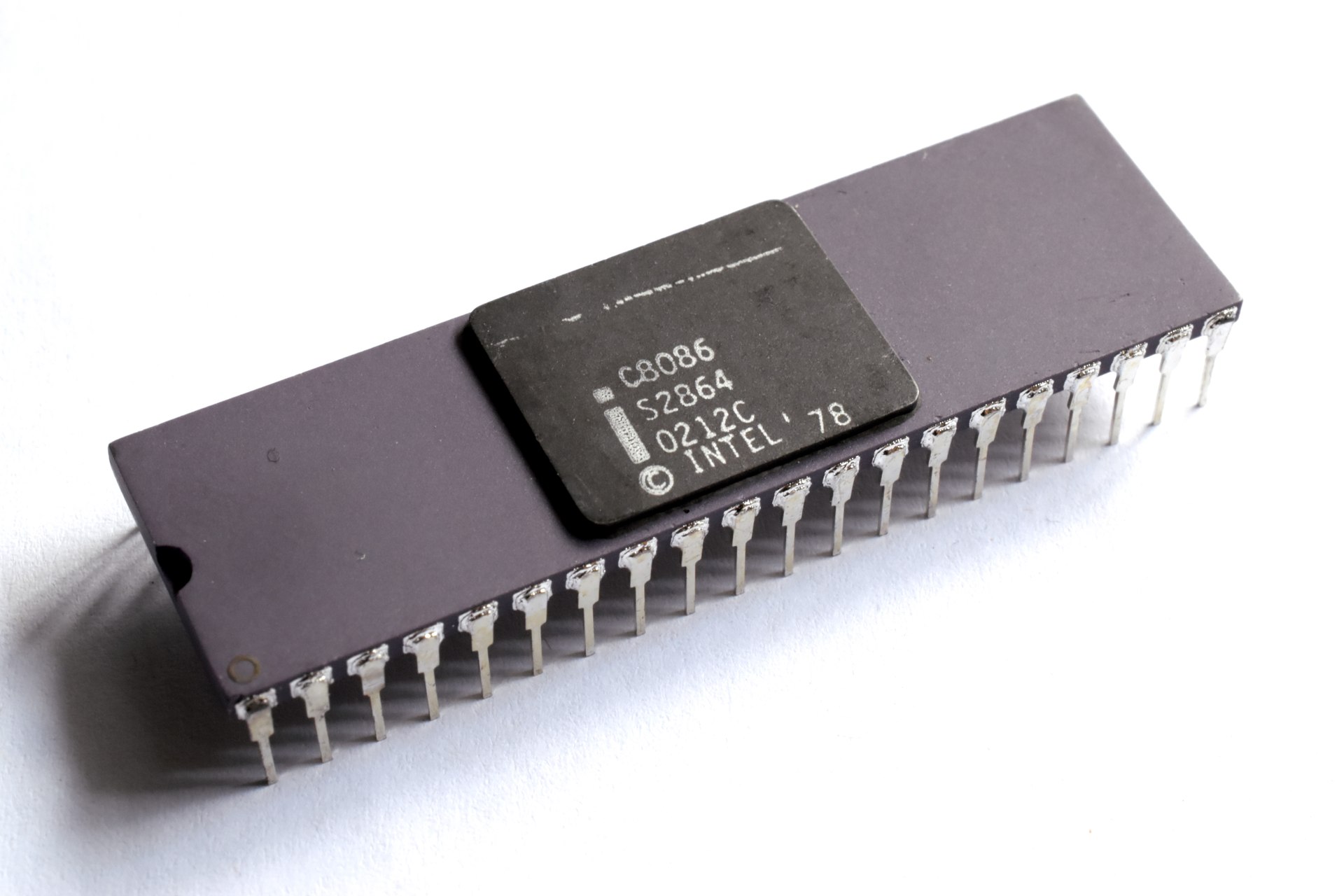

Intel 8086

Intel divides the 8086 into an Execution Unit and a Bus Interface Unit. The execution side handles instructions while the bus side supplies instruction bytes and performs external transfers. A six-byte instruction queue connects them. The related 8088 keeps the same execution unit but uses an eight-bit external data bus and a four-byte queue. Thus, a common instruction set can sit behind materially different instruction-supply hardware.

Memory addressing combines a segment base with an offset. Intel’s manual describes shifting the segment value left by four bits before adding the offset to obtain the physical address. Different segment-and-offset pairs can therefore identify the same physical location. VLSI Museum interpretation: segmentation should be understood as an address-formation rule, rather than as proof that installed memory is physically divided into four separate chips or independent banks.

Intel’s AP-97A application note explains that sequential instruction fetching can overlap execution and that a change of program flow requires fetching from the new location. Operand reads and result writes still need bus service. VLSI Museum interpretation: the queue offers a small reservoir of future work; it does not remove dependence on memory. A register-heavy sequence and a sequence dominated by external transfers can expose different bottlenecks even at the same processor clock.

Intel’s historical reference lists the 8086 in June 1978 with 29,000 transistors, a three-micrometre process label, and a one-megabyte addressable-memory entry. These are processor-level descriptors. VLSI Museum interpretation: the memory limit is not a claim about the RAM fitted to a particular machine, and the process label is not a measurement of every visible feature in this photograph. Die dimensions and specimen speed grade remain unspecified here.

Intel’s account of the IBM PC explicitly identifies its processor as the 8088, a variant of the 8086. The account also describes a wider ecosystem of development tools and supporting components around the processor family. This matters to the exhibit’s genealogy: the 8086 die belongs to the architectural origin of that family, while the first IBM PC is associated with a different processor implementation. A historical relationship is not identity.

Intel’s x86 naming history traces the family name from the 8086 through later processors including the 80186, 80286, 80386, and 80486. VLSI Museum interpretation: an x86 architecture page and an 8086 silicon page answer different questions. The former follows the software-visible family; the latter documents one physical implementation. Later extensions should be attached to their own generation, rather than retroactively added to this 1978 processor.
