Collection/Apple/Apple A19 Pro

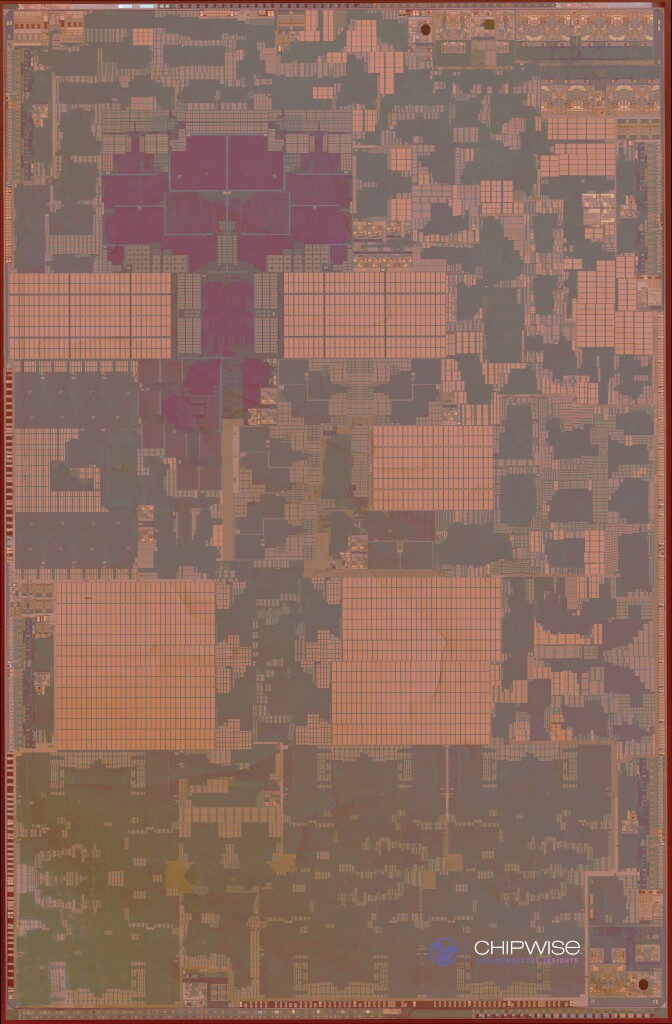

Frontside view of Apple A19 Pro die shot

Image courtesy of Chipwise ·Used with permission· Die photograph · Resized and format-converted for display; original image content and watermarks preserved.

Origin & contributions

Original source · Retrieved 2026-09-09

Chipwise / NanoPhysics · photographer · Included in this image

Image courtesy of Chipwise · Used with permission. Link the original Chipwise source page and retain its markings and credits. Permission reported by the Museum operator on 2026-09-09. Display resizing and format conversion only; no removal of annotations or watermarks. No onward redistribution or comparison-export licence is granted by the Museum.

SILICON DESIGN / 2025

Apple A19 Pro

iPhone 17 Pro SoC with a six-core GPU, GPU Neural Accelerators and 16-core Neural Engine.

AppleSoC

Research connections

CompanyApple ↗SeriesApple A series ↗ArchitectureA19 ↗ProcessTSMC N3P ↗

Specifications

14 SOURCE-LINKED FIELDS

Identity & fabrication
Year	Manufacturer / primary sourceApple Scope: silicon-die Source date: 2025-09-09 Year identifies first public introduction where a dated launch is available; see record notes for exceptions.
Process	Independent measurementTechInsights Scope: silicon-die Source date: 2026-04-22
Foundry	Independent measurementTechInsights Scope: silicon-die Source date: 2026-04-22
CPU & clock domains
CPU cores	Manufacturer / primary sourceApple Scope: silicon-die Source date: 2025-09-09 iPhone 17 Pro / Pro Max configuration.
CPU	Manufacturer / primary sourceApple Scope: silicon-die
Graphics
GPU cores	Manufacturer / primary sourceApple Scope: silicon-die Source date: 2025-09-09 This must not be applied to every A19 Pro device configuration.
GPU	Manufacturer / primary sourceApple Scope: silicon-die
GPU AI	Manufacturer / primary sourceApple Scope: silicon-die
Ray tracing	Manufacturer / primary sourceApple Scope: silicon-die
AI & security
Neural Engine	Manufacturer / primary sourceApple Scope: silicon-die
Packaging, power & physical analysis
Reported die width	Published analysisKurnal Insights Scope: silicon-die Source date: 2026-05-05 Original analyst catalog value. Public entry gives dimensions but does not document calibration, die boundary convention, specimen provenance or uncertainty.
Reported die height	Published analysisKurnal Insights Scope: silicon-die Source date: 2026-05-05 Original analyst catalog value. Public entry gives dimensions but does not document calibration, die boundary convention, specimen provenance or uncertainty.
Reported die area	Published analysisKurnal Insights Scope: silicon-die Source date: 2026-05-05 Original analyst catalog value. Public entry gives dimensions but does not document calibration, die boundary convention, specimen provenance or uncertainty.
Verified die geometry	UnconfirmedApple Scope: silicon-die Source date: 2025-09-09 No source meeting calibrated geometry requirements accepted in this scout pass. Reported measurements, if present, remain separately labeled.

THE VISUAL EVIDENCE

Visual sources

3 DOCUMENTED SOURCES

These additional visual sources open on the publisher’s site.

Die photographExternal source ↗

Recommended source

Apple A19 Pro / APL1V12

Kurnal Insights · Kurnal Insights (in-house origin claimed by publisher)

Technical archive / analysis

Kurnal gallery entry for Apple A19 Pro / APL1V12 die-shot imagery. No image bytes are stored or displayed. Kurnal states that its die-shot imagery is produced in house; no asset-specific upstream credit was found. Photograph rights and any annotation, crop, measurement or written analysis must be resolved separately.

View original die photo

Rights, provenance & link history

Rights status: UNKNOWN
Licence: No reuse grant established
Local hosting / thumbnails / hotlinking: Not enabled / Not enabled / Not enabled
Attribution: Kurnal Insights (in-house origin claimed by publisher)
Identity / confidence: matched / medium
Evidence reviewed: 2026-09-06
Link checked: 2026-09-07 · ok · HTTP 200
