SILICON DESIGN / 2025
Apple A19 iPhone 17 SoC combining a six-core CPU with GPU-integrated Neural Accelerators.
Specifications 8 SOURCE-LINKED FIELDS Identity & fabrication CPU & clock domains Graphics AI & security Packaging, power & physical analysis Identity & fabrication Year 2025 Manufacturer / primary source Apple Scope: silicon-die
Source date: 2025-09-09
Year identifies first public introduction where a dated launch is available; see record notes for exceptions.
Process Third-generation 3 nm Manufacturer / primary source Apple Scope: silicon-die
Foundry Unresearched Scope: silicon-die
Source date: 2025-09-09
Foundry is not named in this Apple announcement.
CPU & clock domains CPU 6-core Manufacturer / primary source Apple Scope: silicon-die
Graphics GPU 5-core Manufacturer / primary source Apple Scope: silicon-die
GPU AI Neural Accelerator in each GPU core Manufacturer / primary source Apple Scope: silicon-die
AI & security Neural Engine 16-core Manufacturer / primary source Apple Scope: silicon-die
Packaging, power & physical analysis Verified die geometry Unresearched Scope: silicon-die
Source date: 2025-09-09
No source meeting calibrated geometry requirements accepted in this scout pass. Reported measurements, if present, remain separately labeled.
Suggest a correction Enter the full die exhibit
Follow the connections 1 SOURCE-LINKED RELATIONSHIPS Overview Sources & history Discussion
Record identity & scope silicon design · Apple A19

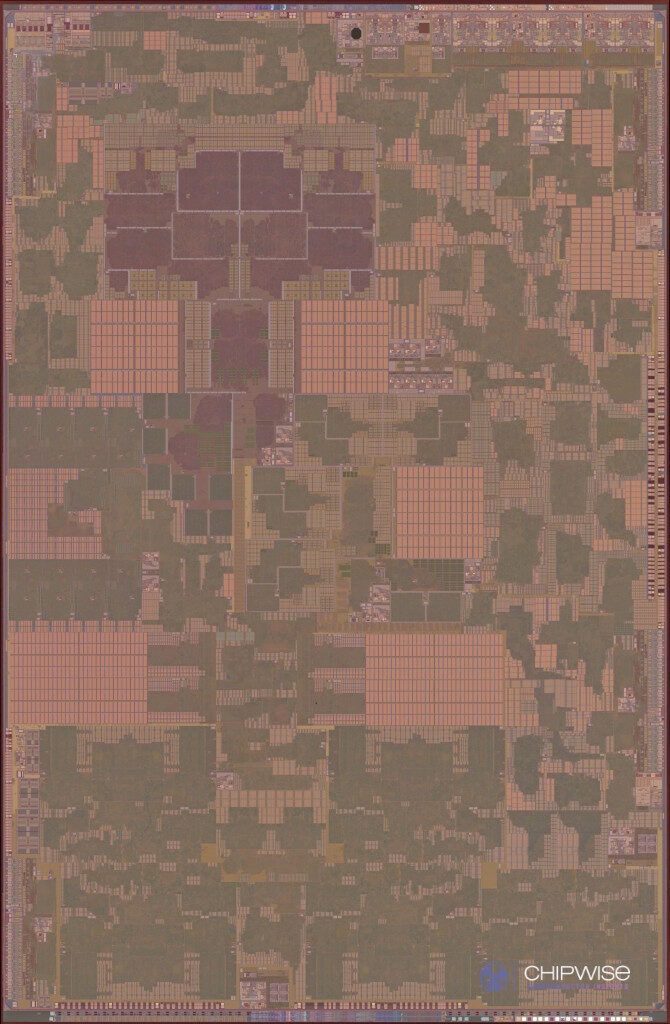

What this photograph shows Apple A19 die shot analysis. Frontside die view, as identified by source
